Conical electroplated diamond grinding heads engraving chamfering drilling deburring grinding bits
Diameter: 8mm-70mm
Shank diameter: 3mm, 6mm, 10mm
Regular total length: 60mm

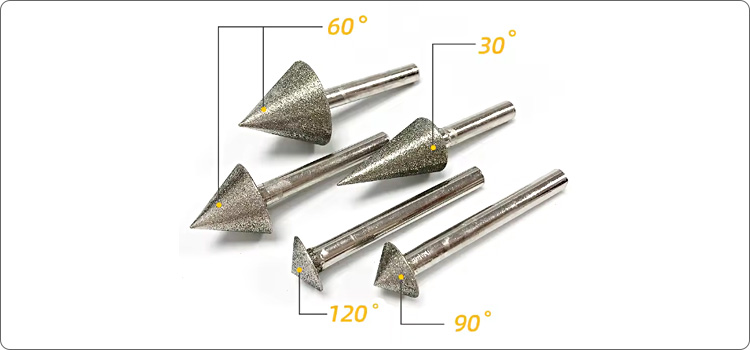

Angles: degree 30/45/60/90/120
Diamond grit: #80, #120, #150, #180, #240, #320
Conical electroplated diamond grinding heads engraving chamfering drilling deburring grinding bits

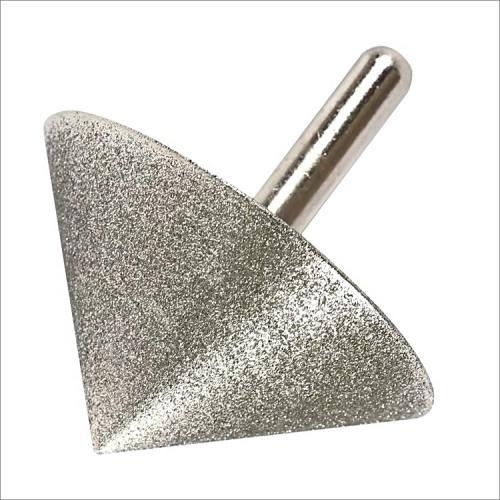

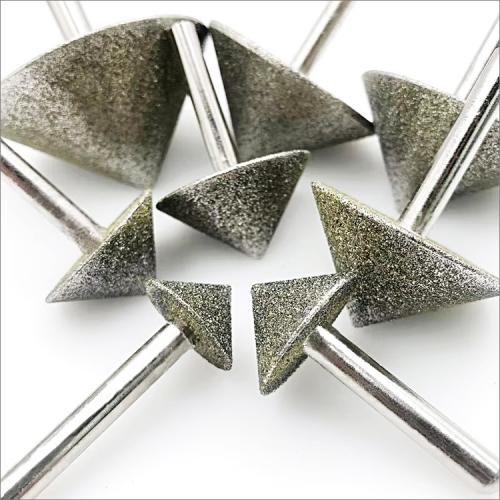

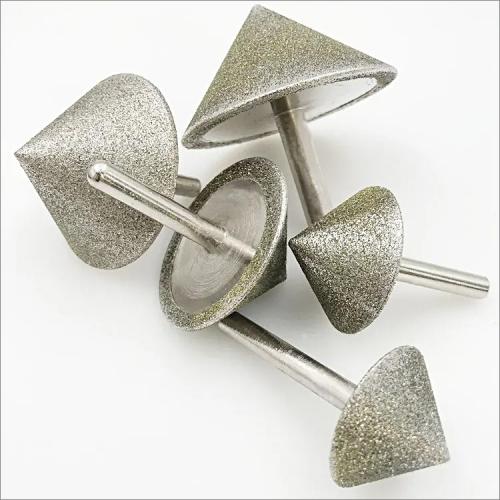

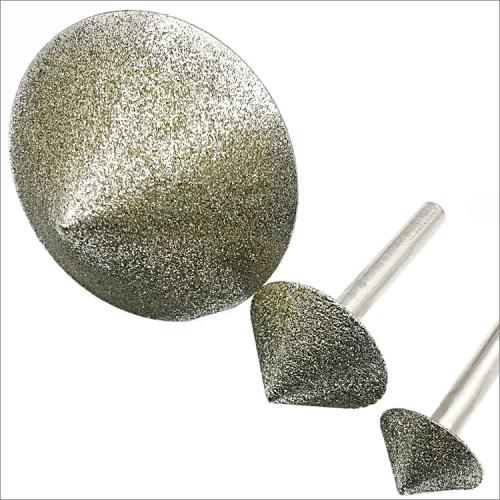

These umbrella shape conical electroplated diamond grinding bits are used for

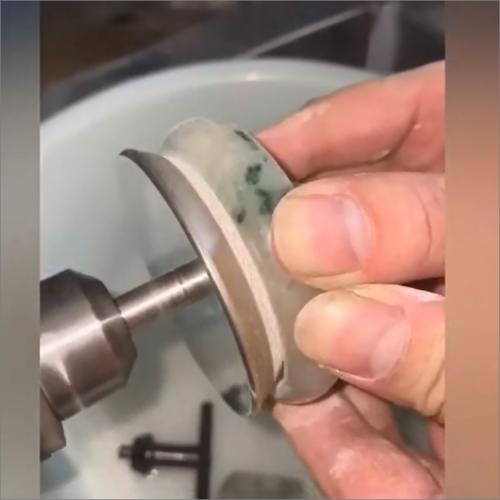

grinding chamfering deburring drilling of various materials such as ceramic
tile, glass, soft stone, jewelry, jade, gemstone, alloys steel,
wood, etc.

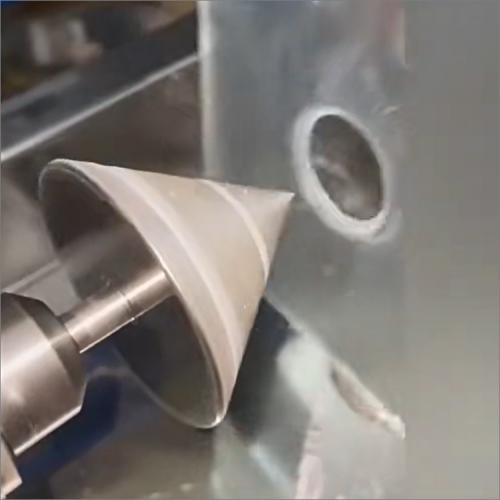

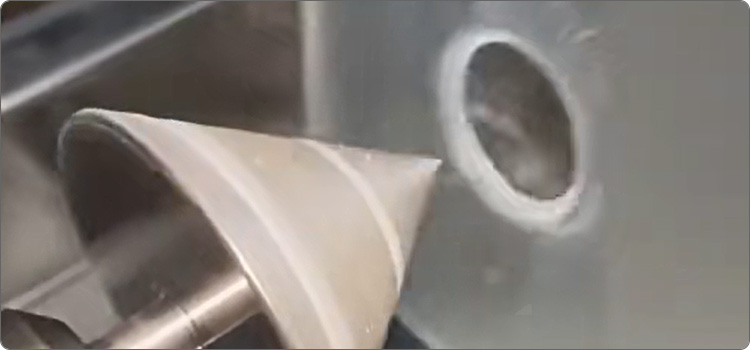

These grinding heads can be installed on electric mills, carving machines, hanging mills, hand electric drills, pneumatic air mills, and other electrical tools can hold 3/6/10mm handles can be used.
Please use water for coolant.

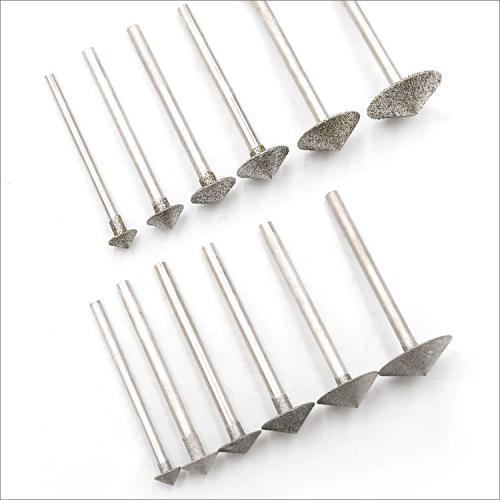

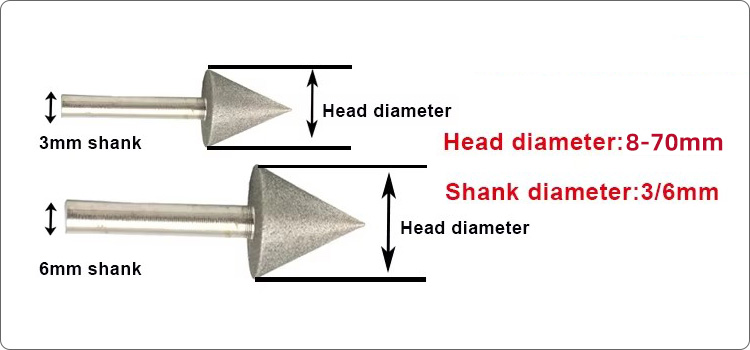

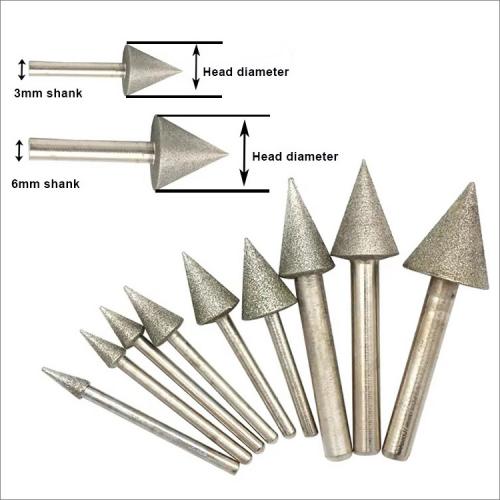

Diameter: 8mm-70mm.
Shank diameter: 3mm, 6mm, 10mm.
Regular total length: 60mm.

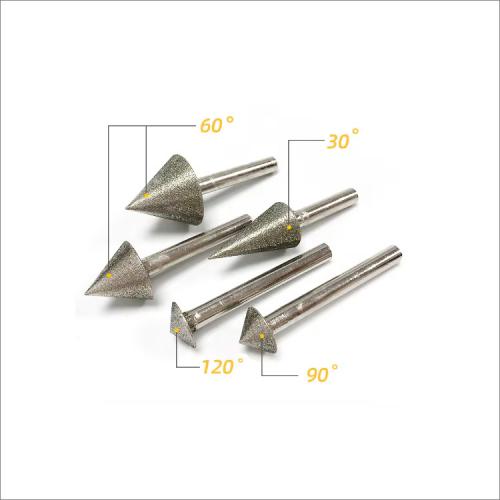

Angles: degree 30/45/60/90/120.
Diamond grit: #80, #120, #150, #180, #240, #320, other grit is possible available.
|
Code No. |
Diameter |
Diamond Grit |
| DGH-EL12-08 | 8mm | #80 - #320 |
| DGH-EL12-10 | 10mm | #80 - #320 |
| DGH-EL12-12 | 12mm | #80 - #320 |
| DGH-EL12-14 | 14mm | #80 - #320 |
| DGH-EL12-16 | 16mm | #80 - #320 |
| DGH-EL12-20 | 20mm | #80 - #320 |
| DGH-EL12-25 | 25mm | #80 - #320 |
| DGH-EL12-30 | 30mm | #80 - #320 |
| DGH-EL12-35 | 35mm | #80 - #320 |
| DGH-EL12-40 | 40mm | #80 - #320 |
| DGH-EL12-45 | 45mm | #80 - #320 |
| DGH-EL12-50 | 50mm | #80 - #320 |
| DGH-EL12-55 | 55mm | #80 - #320 |
| DGH-EL12-60 | 60mm | #80 - #320 |
| DGH-EL12-65 | 65mm | #80 - #320 |
| DGH-EL12-70 | 70mm | #80 - #320 |
The above specifications & photos are for reference, other specifications may be available as per demand.
