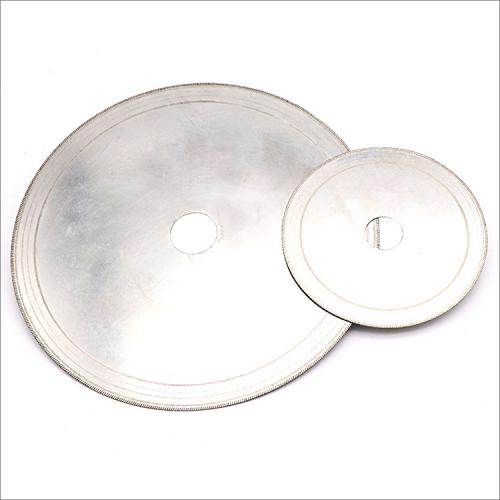

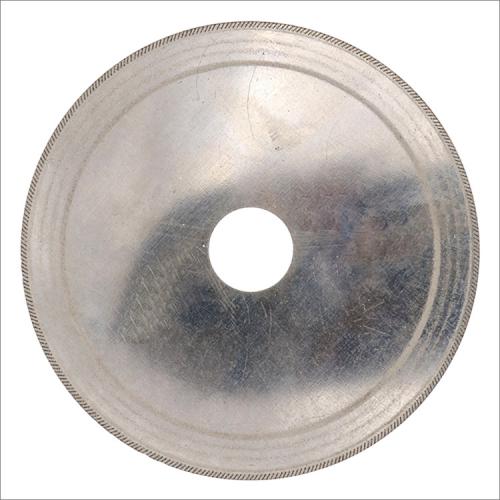

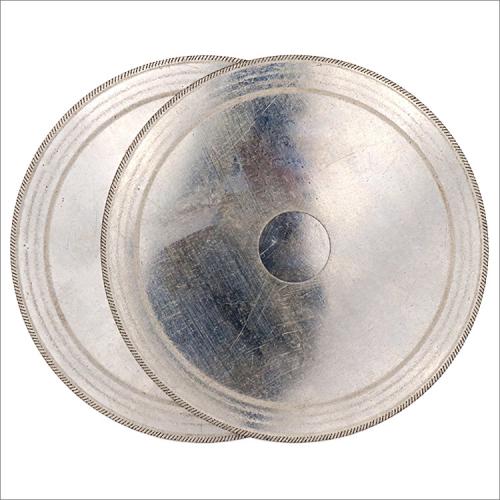

Ultra-thin continuous rim turbo teeth diamond circular saw blades lapidary jewelry gemstone cutting discs
Diameter: 60mm - 250mm
Diamond grit: #60-#150
Thickness: 0.2-1.5mm
Bore size: 12.7mm, 16mm, 20mm, 25.4mm, 32mm, 50mm
Wet use
Ultra-thin continuous rim turbo teeth diamond circular saw blades lapidary jewelry gemstone cutting discs

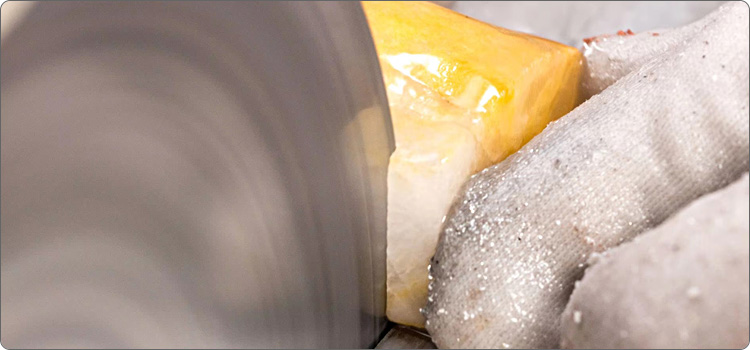

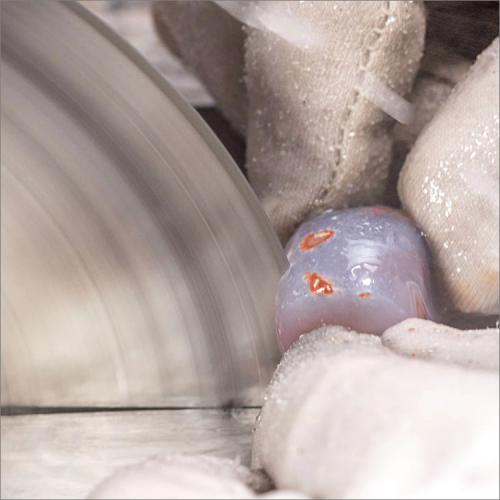

This ultra-thin continuous rim type diamond saw blades
with turbo teeth are used for cutting a wide
range of materials such as soft
stone, marble, agate, jade, gemstone, glass, crystal, jewelry,
corundum, charcoal, etc., exclusively designed for processing high
value materials.
The blades are manufactured by crimping synthetic diamonds directly into the edge of the saw blade, perfect for hobbyists and DIY jewelry makers seeking a reliable cutting solution.
The water is required to cool and lubricate when cutting is processing.
Bore size: 12.7mm, 16mm, 20mm, 25.4mm, 32mm, 50mm.
|
Code No. |
Diameter |
Thickness |
| DSB-EL32-060 | 60mm | 0.5mm |
| DSB-EL32-080 | 80mm | 0.2/0.3mm |
| DSB-EL32-100 | 100mm | 0.2/0.3/0.4mm |
| DSB-EL32-110 | 110mm | 0.2/0.3/0.4/0.5mm |
| DSB-EL32-120 | 120mm | 0.2/0.3/0.4/0.5mm |
| DSB-EL32-150 | 150mm | 0.3/0.4/0.5mm |
| DSB-EL32-180 | 180mm | 0.3/0.5mm |
| DSB-EL32-200 | 200mm | 0.3/0.5mm |
| DSB-EL32-250 | 250mm | 0.3/0.5mm |
The above specifications & photos are for reference, other specifications may be available as per demand.
