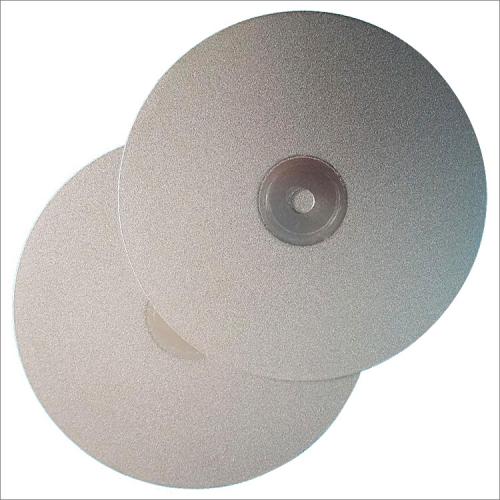

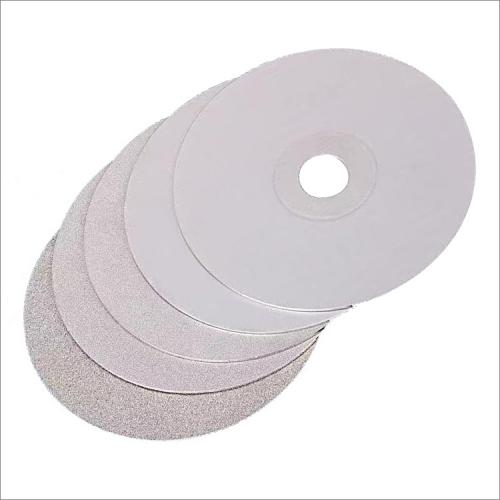

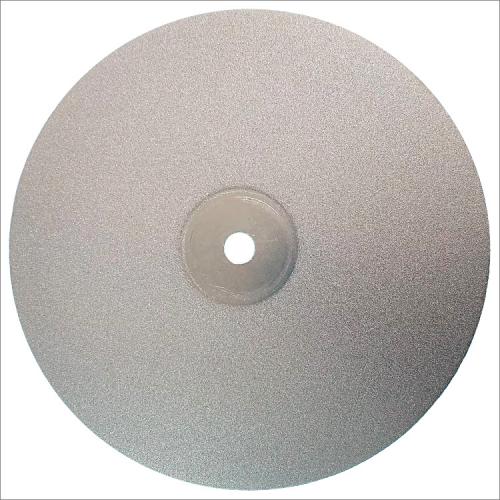

Ultra-hard one side electroplated diamond grinding discs
Diameter: 4", 6", 8"
Diamond grit: #150 - #3000
Thickness: 1.0 or 1.2mm
Bore size: 12.7mm, 20mm, 25.4mm, 40mm
Ultra-hard electroplated diamond grinding discs

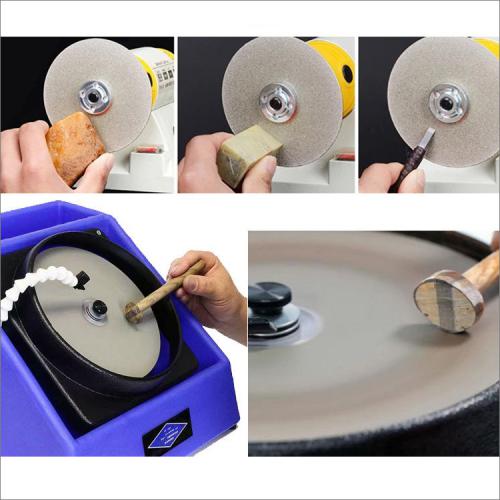

This one sides electroplated type diamond grinding discs are used for grinding a wide range of materials such
as soft stone, ceramic, porcelain, glass, fiberglass, crystal,
agate, jade, gemstones, alloy, knives, molds, tungsten steel, hobbing, etc.,
specially for the high precision industry.
Wet or dry use, wet working may prolong the working life.
Diamond grit: 150,180,240,320,400,500,600,800,1000,1200,1500,1800,2000,2500,3000#
Bore size: 12.7mm, 20mm, 25.4mm, 40mm (other bore size is possible available).
|
Code No. |
Diameter |
Thickness |
| DGW-EL01-100 | (4")100mm | 1.0 or 1.2mm |
| DGW-EL01-150 | (6")150mm | 1.0 or 1.2mm |
| DGW-EL01-200 | (8")200mm | 1.0 or 1.2mm |
The above specifications & photos are for reference, other specifications may be available as per demand.
