Three sides coated diamond electroplated grinding wheels polishing sharpening discs for tungsten steel alloy
Diameter: 60mm, 78mm, 100mm
Diamond coated thickness: 5-10mm
Diamond grit: #60 - #800
Bore size: 10mm
Wet or dry use

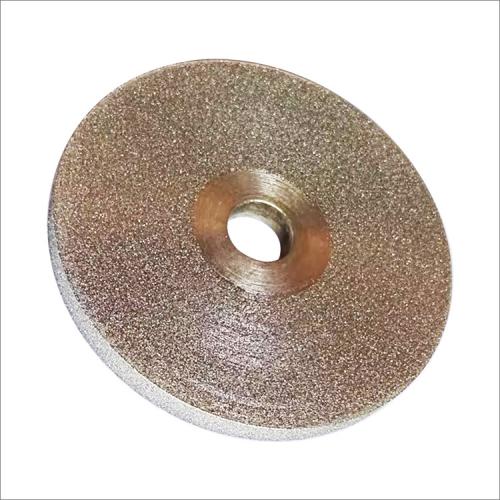

Three sides coated diamond electroplated grinding wheels polishing sharpening discs for tungsten steel alloy
These 60mm 78mm 100mm three sides coated diamond electroplated grinding wheels are mainly
used for grinding hard alloy measuring tools, foot steel, high-speed
steel, alloy steel, glass, gemstones, jadeite amber beeswax raw
stones, magnetic materials, ceramics, molds, etc.
The high quality abrasives deliver smooth and consistent material removal, the electroplated premium quality diamond sand is evenly attached to the steel body and wear-resistant, not easy to drop, ensure long-lasting durability and sharpness.
Wet or dry use, wet working may prolong the working life.

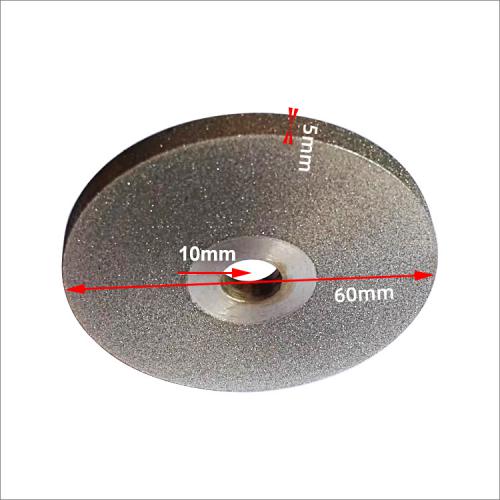

Diameter: 60mm, 78mm, 100mm.
Diamond coated thickness : 5-10mm.
Diamond grit: #60, #80, #100, #120, #150, #180, #240, #320, #500, #600, #800, other grit is possible available.
Bore size: 10mm(or as per demand).
|
Code No. |
Diameter |
Diamond Grit |
| DGW-EL12-060 | (2.36")60mm | #60 - #800 |
| DGW-EL12-078 | (3")78mm | #45 - #1200 |
| DGW-EL12-100 | (4")100mm | #45 - #1200 |
The above specifications & photos are for reference, other specifications may be available as per demand.
