10 to 50mm Concave spherical electroplated diamond grinding heads stone carving bits diamond mounted points
Inner diameter: 10mm-25mm.
Shank diameter: 6mm.
Inner diameter: 20mm-50mm.
Adaptor bore size: M10, M14, 5/8"-11.
Regular total length: 40-60mm.
Diamond grit: #70
10 to 50mm concave spherical electroplated diamond grinding heads stone carving bits diamond mounted points
These diameter range from 10mm to 50mm concave spherical
electroplated diamond grinding heads are high-performance tools designed for carving grinding polishing
stone, concrete, ceramic, glass, jewelry, jade, amber, beeswax,
gemstone, and some other abrasive or hard materials.

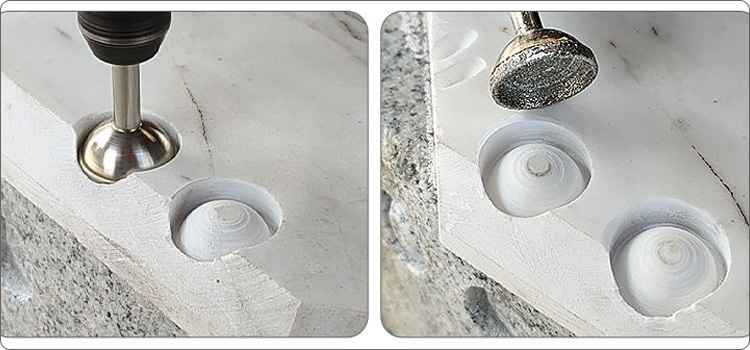

These tools excel in forming and grinding spherical beads, they produce clean, accurate beads with minimal chipping, enhancing the quality of your craftsmanship.

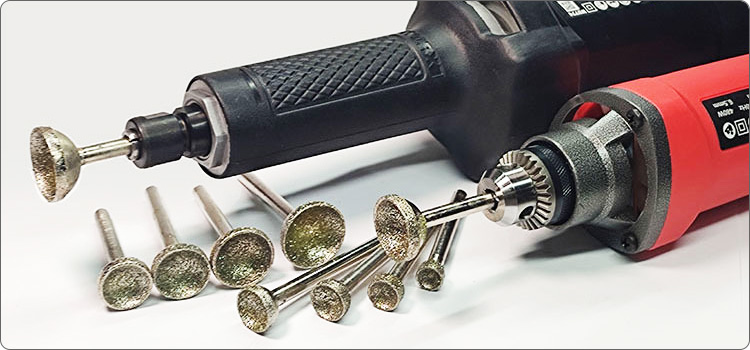

These grinding heads can be installed on the crane grinders, electric grinder, engraving machines, hanging mill and hand electric drill, but never use drills while machine is in hammer action.
They are operating optimally at a speed of 2000-3000 rpm/min, their electroplated diamond surface boast high hardness and excellent wear resistance, ensuring durability and efficiency.
Please use water for coolant.

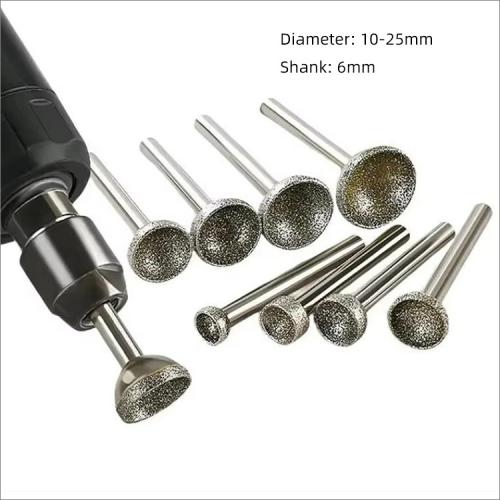

Inner diameter: 10mm-25mm.
Shank diameter: 6mm.

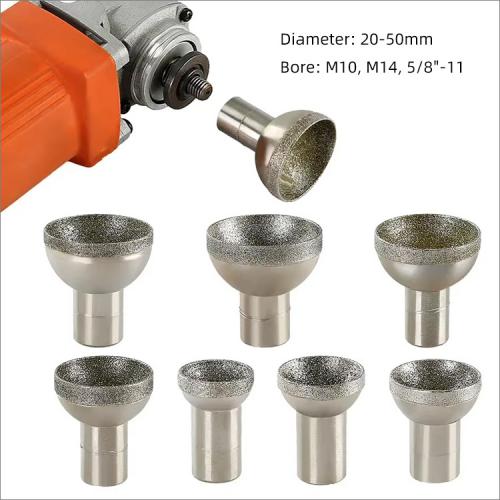

Inner diameter: 20mm-50mm.
Adaptor bore size: M10, M14, 5/8"-11.
Regular total length: 40-60mm.
Diamond grit: #70, other grits(#80, #120, #150, #180, #240, #320) is possible available.
|
Code No. |
Diameter |
Diamond Grit |
| DGH-EL03-10 | 10mm | #70 |
| DGH-EL03-12 | 12mm | #70 |
| DGH-EL03-14 | 14mm | #70 |
| DGH-EL03-16 | 16mm | #70 |
| DGH-EL03-18 | 18mm | #70 |
| DGH-EL03-20 | 20mm | #70 |
| DGH-EL03-25 | 25mm | #70 |
The above specifications & photos are for reference, other specifications may be available as per demand.
