Mini electroplated diamond saw blades small DIY cutting discs grinding wheels
Diameter: 25mm - 80mm
Diamond grit: #40-#150
Bore size: 20mm, 22.23mm, M14, 58"-11
Use: cutting or grinding
Wet or dry use

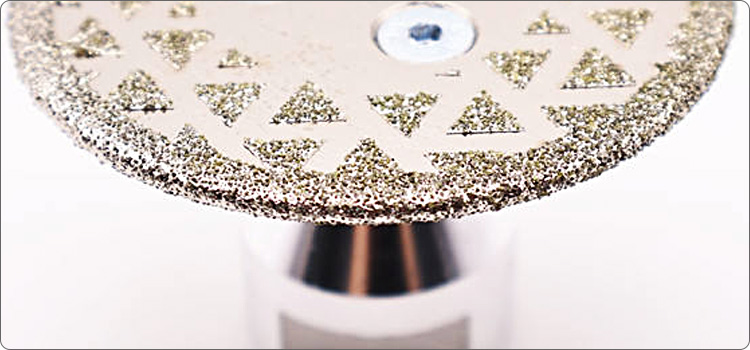

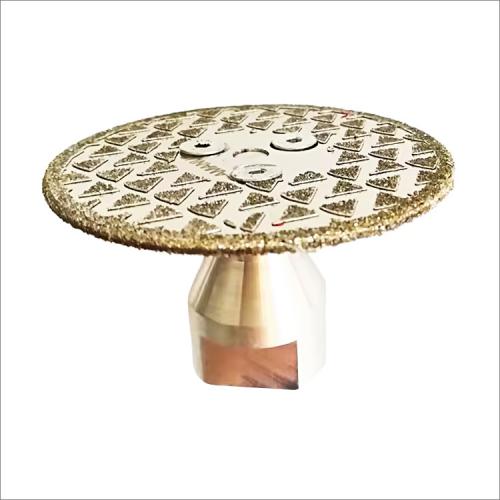

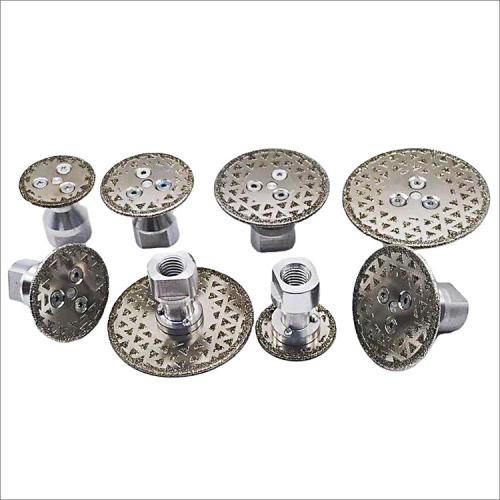

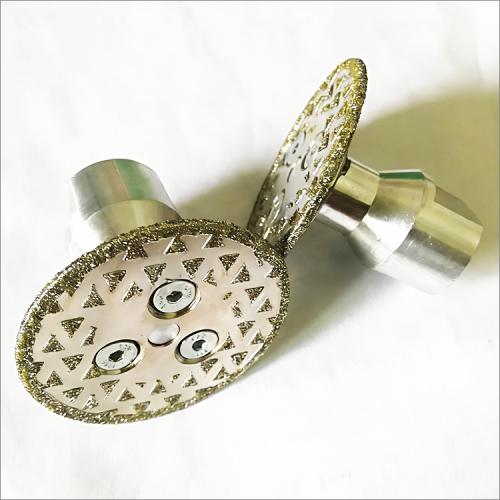

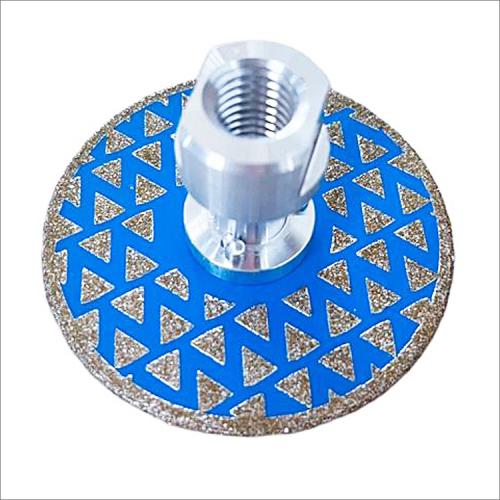

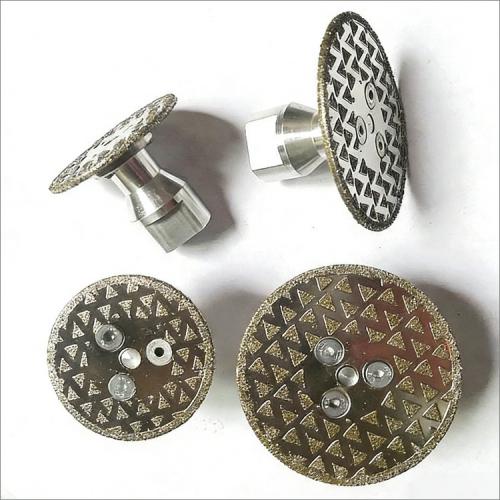

Mini electroplated diamond saw blades small DIY cutting discs grinding wheels
These 25mm-80mm mini continuous rim type double sides electroplated diamond saw blades
are used on angle grinders for cutting grinding a wide
range of materials such as soft
stone, marble, quartz, ceramic, porcelain tiles, glass, fiberglass, plastic
pipes, carbide, rocks, aluminum, copper, synthetic composites.
Wet or dry use, wet working may prolong the working life.
Diameter: 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 65mm, 80mm.
Diamond grit: #40 (other diamond grits #50 to #150 may be available).
Bore size: 20mm, 22.23mm, M14, 58"-11.
|
Code No. |
Diameter |
Diamond grit |
| DSB-EL14M-25 | 25mm | #40 |
| DSB-EL14M-30 | 30mm | #40 |
| DSB-EL14M-35 | 35mm | #40 |
| DSB-EL14M-40 | 40mm | #40 |
| DSB-EL14M-45 | 45mm | #40 |
| DSB-EL14M-50 | 50mm | #40 |
| DSB-EL14M-65 | 65mm | #40 |
| DSB-EL14M-75 | 75mm | #40 |
| DSB-EL14M-80 | 80mm | #40 |
The above specifications & photos are for reference, other specifications may be available as per demand.
