Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone granite

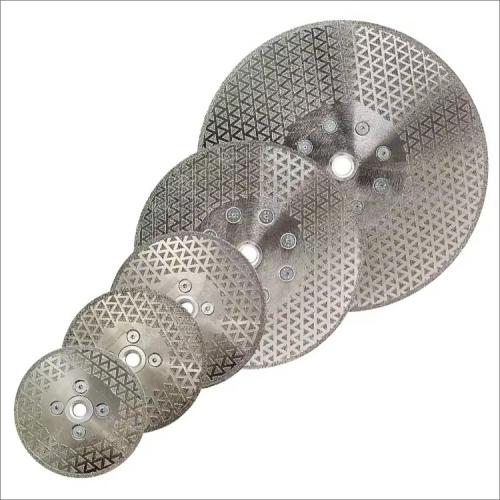

Diameter: 1.2"-9"
Diamond grit: #40-#120
Diamond working width: 5mm - 10mm
Bore size: 20mm, 22.23mm, with flange M14, 5/8"-11

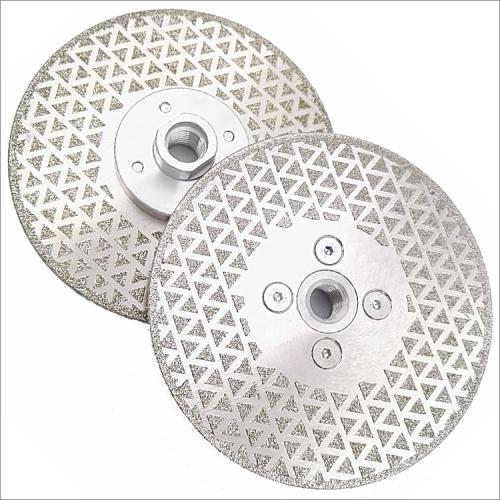

Blade type: continuous rim with triangle spots coated on both sides
Use: cutting or grinding
Wet or dry use
Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone granite

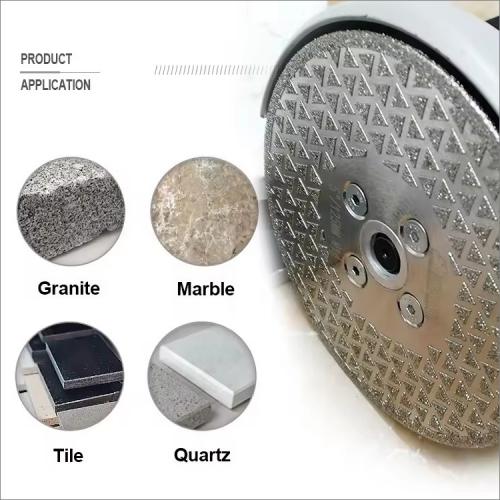

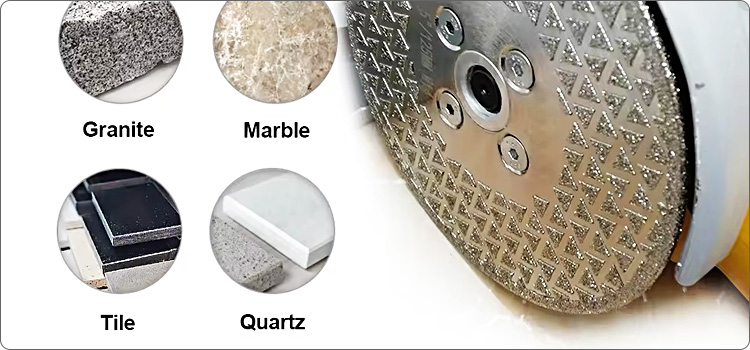

This continuous rim type electroplated diamond blades are designed for wet or dry cutting grinding soft
stone, marble, ceramic, glass, fiberglass, gemstone, etc. with high
cutting efficiency, low noise and flexible usage.

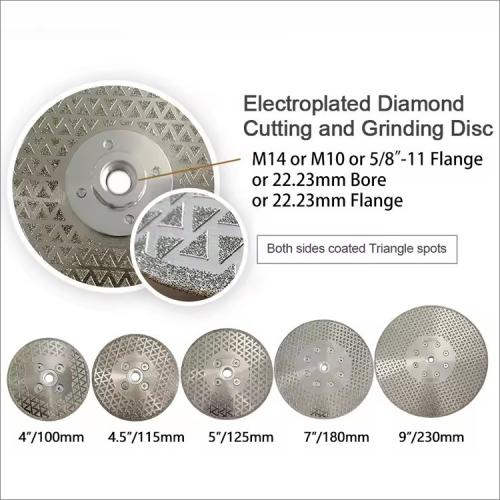

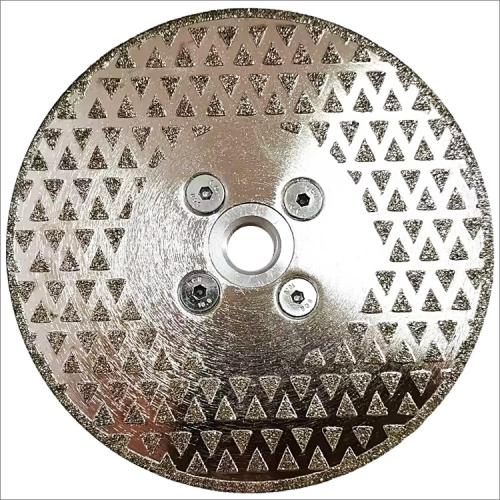

Triangle spots coated on both sides for grinding purpose.
It is one type common tools for cutting and grinding non-metallic brittle materials. Electroplated technology keeps all diamond grain attached to the double sides of steel core, high diamond exposure rate provide high efficient working performance.
Wet working may prolong the working life, and not recommended for hard granite.
Bore size: 22.23mm, with flange M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
| DSB-EL14-030 | 30mm | #40 |
| DSB-EL14-040 | 40mm | #40 |
| DSB-EL14-050 | 50mm(2") | #40 |
| DSB-EL14-065 | 65mm | #40 |
| DSB-EL14-080 | 80mm | #40 |
|
DSB-EL14-100 |
100mm(4") |
#40 |
| DSB-EL14-115 |
115mm(4-1/2") |
#40 |
| DSB-EL14-125 |
125mm(5") |
#40 |
| DSB-EL14-150 |
150mm(6") |
#40 |
| DSB-EL14-180 |
180mm(7") |
#40 |
| DSB-EL14-200 |
200mm(8") |
#40 |
| DSB-EL14-230 |
230mm(9") |
#40 |
The above specifications & photos are for reference, other specifications may be available as per demand.
