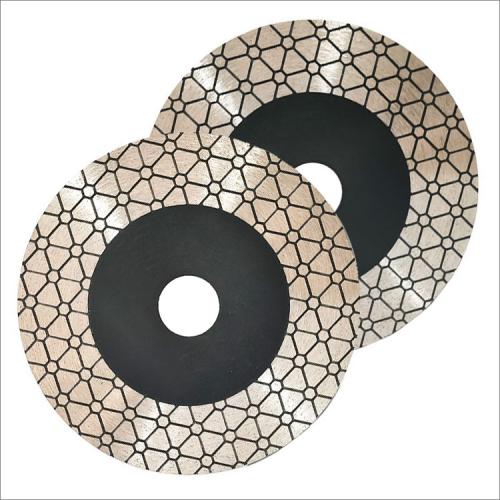

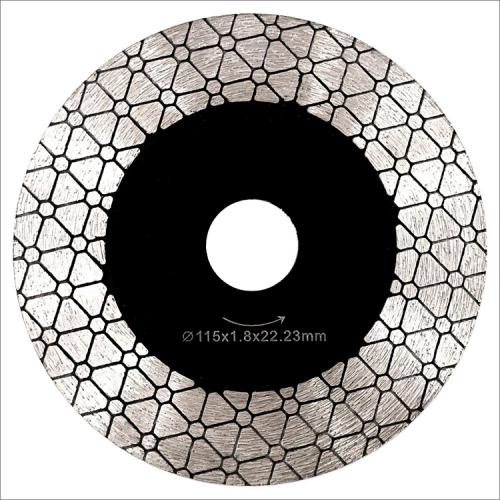

Diamond cutting grinding disc for ceramic porcelain tile marble - continuous rim & triangle segments
Diameter: 4.5", 5"
Segment height: 25mm
Bore size: 20mm, 22.23mm, M14 or 5/8"-11 with flange
Hot-press sintered
Wet or dry use
Used with angle grinders or tile saws
Recommended speed: 8000RPM
Maximum speed: 13200RPM
Diamond cutting grinding disc for ceramic porcelain tile marble - continuous rim & triangle segments
4.5 5 inches ultra-thin diamond saw blades with double sides continuous rim triangle segments for cutting grinding ceramic, porcelain, tile, masonry, marble, and soft stone, fast smooth and precise cutting, less dust, less vibration, higher work efficiency.
|
Code No. |
Diameter |
Segment size (W*H)mm |
|
SBCP-08-115 |
115mm(4.5") |
1.8*25mm |
|
SBCP-08-125 |
125mm(5") |
1.8*25mm |
The above specifications & photos are for reference, other specification may be available as per demand.
