PCD grinding cup wheels for concrete floor - double rows
Diameter: 4" - 10"
PCD size: 1/4 round or 1/3 round
PCD No.: 4-22pcs
Bore size: 16mm, 20mm, 22.23mm, M14, 5/8"-11
Dry or wet use

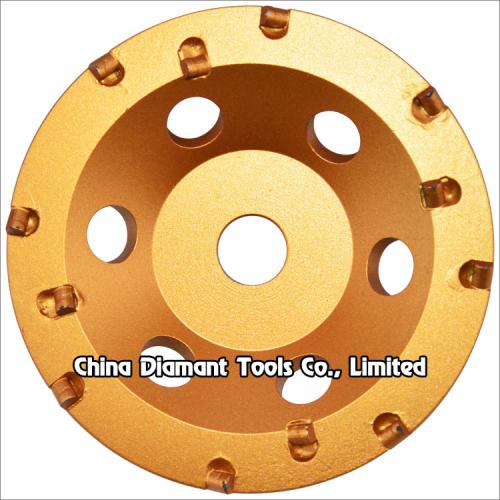

PCD grinding cup wheels for concrete floor - double rows
This double rows PCD cup wheel is a perfect tool for sharp removal of heavy epoxy, coatings, mastic, glues or even fast stock removal of concrete, which is designed for fast removing hard and tacky surfaces including: waterproofing membrane, pool deck coating, thick mastic, old and new epoxy coating, paint, VCT/carpet glues, etc., usually the PCD segment scrapes and rips the toughest coating from the surface quickly and effectively with no loading up.
Manufactured from the high quality polycrystalline diamonds. This tools scraping action eliminates gumming up of segments and maximizes production.
Diameter: 105mm(4"), 115mm(4.5"), 125mm(5"), 150mm(6"), 180mm(7"), 200mm(8"), 250mm(10").
PCD size: 1/4 round or 1/3 round.
PCD No.: 4-22pcs.
Bore size: 16mm, 20mm, 22.23mm, M14, 5/8"-11.
Dry or wet use.
May be used on angle grinders or floor grinders.
| Code No. |
Diameter |
PCD No. |
| GCW-PCD13-105 |
105mm(4") |
9/12 |
| GCW-PCD13-115 |
115mm(4.5") |
9/12 |
| GCW-PCD13-125 |
125mm(5") |
9/12 |
| GCW-PCD13-150 |
150mm(6") |
12/15 |
|
GCW-PCD13-180 |
180mm(7") |
12/15/18 |
|
GCW-PCD13-200 |
200mm(8") |
15/18/21 |
|
GCW-PCD13-250 |
250mm(10") |
15/18/21 |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
